Merge branch 'dev' into feature-emqx

# Conflicts:
#	manager/src/main/resources/application.yml

README.md

@@ -13,6 +13,11 @@
  **智能家居小程序：** https://gitee.com/iotkit-open-source/iot-mp-home

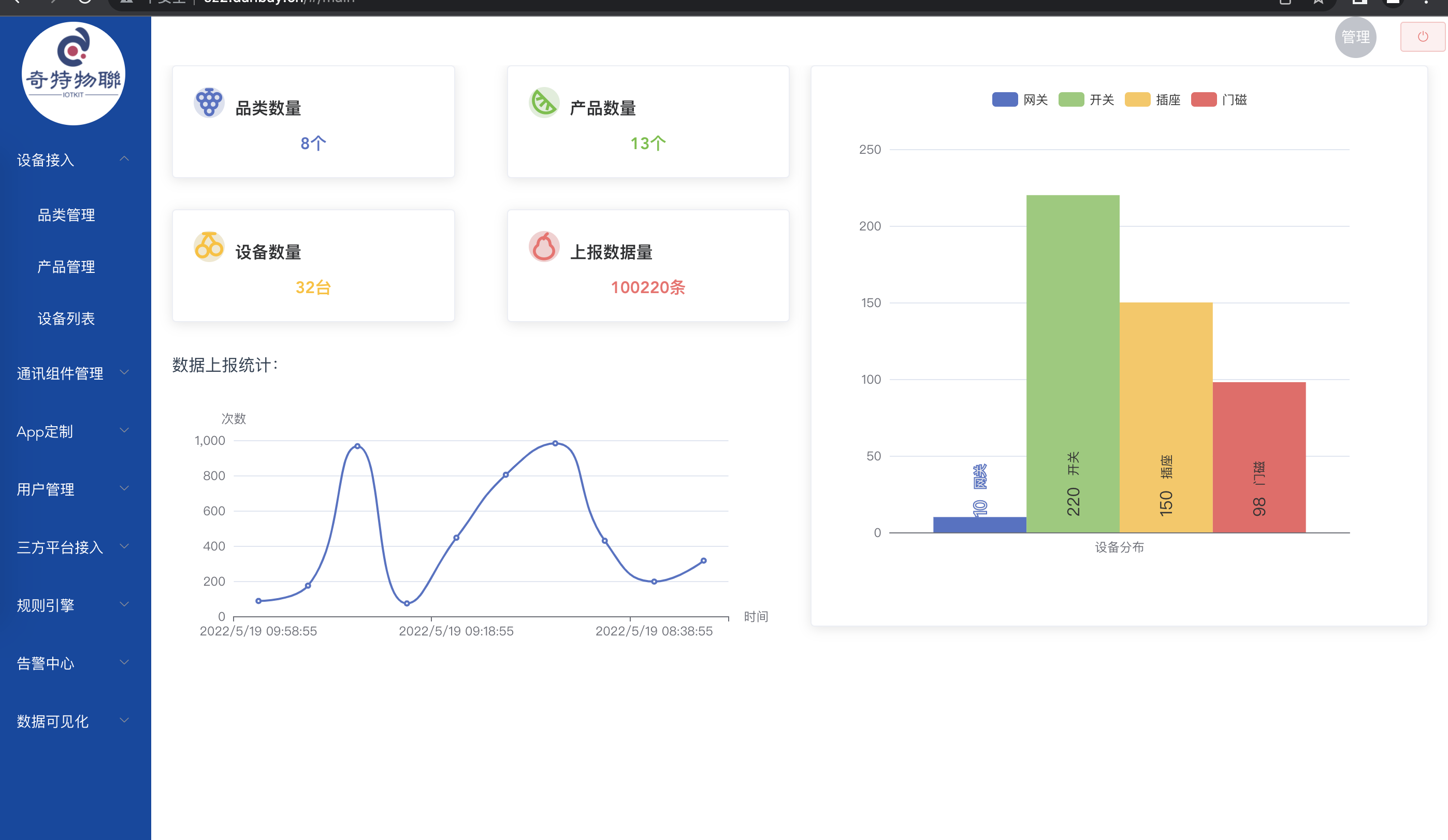

+ **系统截图**
+![输入图片说明](doc/WechatIMG538.png)
+![输入图片说明](doc/WechatIMG539.png)
+
+
 #### 软件架构
 软件架构说明
 本系统采用springboot、mongodb、redis、elasticsearch、pulsar、sa-token等框架和第三方软件
@@ -20,7 +25,101 @@

 #### 安装教程

-见：https://ztktkv.yuque.com/docs/share/b32da919-0108-4112-9406-fe5c6672e0d7?# 《安装和配置》
+ **application-dev.yml配置：**
+
+```
+server:
+  port: 8086
+
+spring:
+  servlet:
+    multipart:
+      enabled: true
+      max-file-size: 10MB
+      max-request-size: 12MB
+
+  #mongodb数据库配置
+  data:
+    mongodb:
+      uri: mongodb://填写mongodb地址
+      database: iotkit
+
+  elasticsearch:
+    rest:
+      #使用内置es的配置
+      uris: http://127.0.0.1:9200
+      username:
+      password:
+      connection-timeout: 10s
+
+  redis:
+    #使用内置redis的配置
+    host: 127.0.0.1
+    port: 6379
+    database: 0
+    password:
+
+  mvc:
+    pathmatch:
+      matching-strategy: ant_path_matcher
+
+#图片存储用的是阿里云oss，如果需要上传产品图片才需要配置
+aliyun:
+  bucketId: 填写阿里云bucketId
+  endpoint: oss-cn-shenzhen.aliyuncs.com
+  accessKeyId: 填写阿里云accessKeyId
+  accessKeySecret: 填写阿里云accessKeySecret
+
+sa-token:
+  # token名称 (同时也是cookie名称)
+  token-name: satoken
+  # token有效期，单位s 默认30天, -1代表永不过期
+  timeout: 2592000
+  # token临时有效期 (指定时间内无操作就视为token过期) 单位: 秒
+  activity-timeout: -1
+  # 是否允许同一账号并发登录 (为true时允许一起登录, 为false时新登录挤掉旧登录)
+  is-concurrent: true
+  # 在多人登录同一账号时，是否共用一个token (为true时所有登录共用一个token, 为false时每次登录新建一个token)
+  is-share: false
+  # token风格
+  token-style: uuid
+  # 是否输出操作日志
+  is-log: false
+
+#pulsar消息队列配置，需要进行配置
+pulsar:
+  broker: pulsar://pulsar broker地址:6650
+  service: http://pulsar 服务地址:8080
+
+#认证中心地址
+oauth2:
+  auth-server-url: http://127.0.0.1:8086
+
+
+```
+

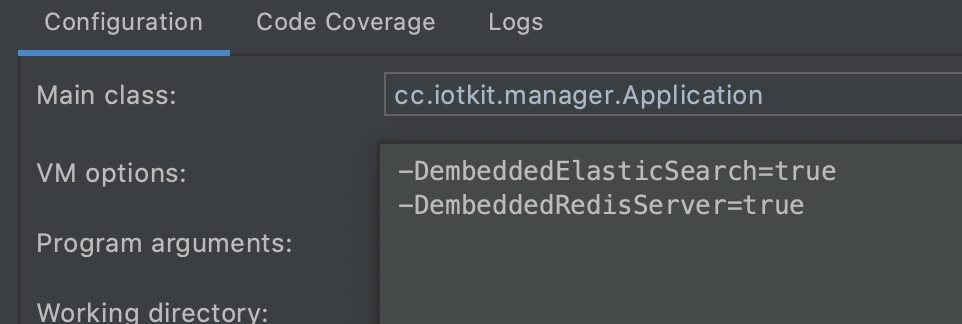

+ **启用内置es和redis配置**
+增加启动参数
+
+```
+embeddedElasticSearch=true
+embeddedRedisServer=true
+```
+
+如idea中：
+
+![输入图片说明](doc/WX20220519-131333@2x.png)
+
+ **mongodb数据库示例脚本**
+
+请加QQ或微信群获取
+
+
+以上，最小配置项：pulsar消息队列配置、mongodb数据库配置。
+
+monogodb和pulsar安装配置见末尾。
+
+

 #### 使用说明

@@ -28,20 +127,24 @@
     邀你加入「iot平台技术文档」知识库: https://ztktkv.yuque.com/g/ztktkv/gb3v6g/collaborator/join?token=zz5PUmXzGQqc4h9t#

       **这是我宝贵的技术文档分享，请给本仓库点个star :sparkles: 支持一下，谢谢！**
-2.  系统操作文档
+2.  系统操作说明

-#### 待办事项
-- ->告警中心
-- 数据大屏
+ **开启MQTT标准协议接入功能**

+在消息转换器管理中编辑”奇特MQTT标准协议“，编辑转换脚本（示例脚本进群获取）。

+启用MQTT标准协议组件：

-#### 参与贡献
+在组件管理中修改”MQTT标准协议组件“，上传组件jar包，将mqtt-component项目执行打包生成的mqtt-component-xx.jar上传，然后再编写脚本（示例脚本进群获取），然后点击”状态“启用组件。

-1.  Fork 本仓库
-2.  新建 Feat_xxx 分支
-3.  提交代码
-4.  新建 Pull Request
+ **使用模拟器进行设备测试**
+
+启动项目中的mqtt-client-simulator模拟器，模拟设备接入系统
+
+
+#### 待办事项
+- ->告警中心
+- 数据大屏


 #### 捐助与支持
@@ -54,3 +157,12 @@
 微信群:

 ![输入图片说明](doc/ma.png)
+
+

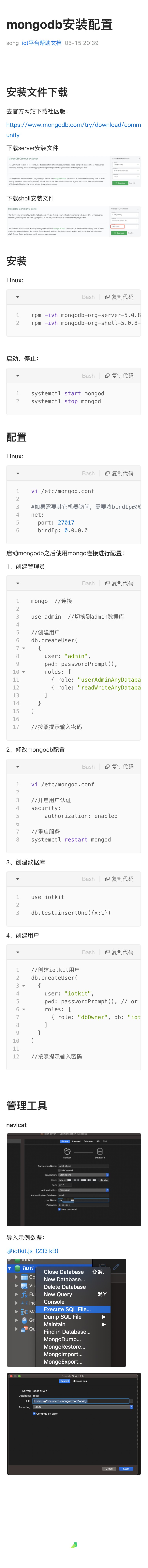

+  **mongodb安装配置**
+
+![输入图片说明](doc/mongodb%E5%AE%89%E8%A3%85%E9%85%8D%E7%BD%AE.jpg)
+

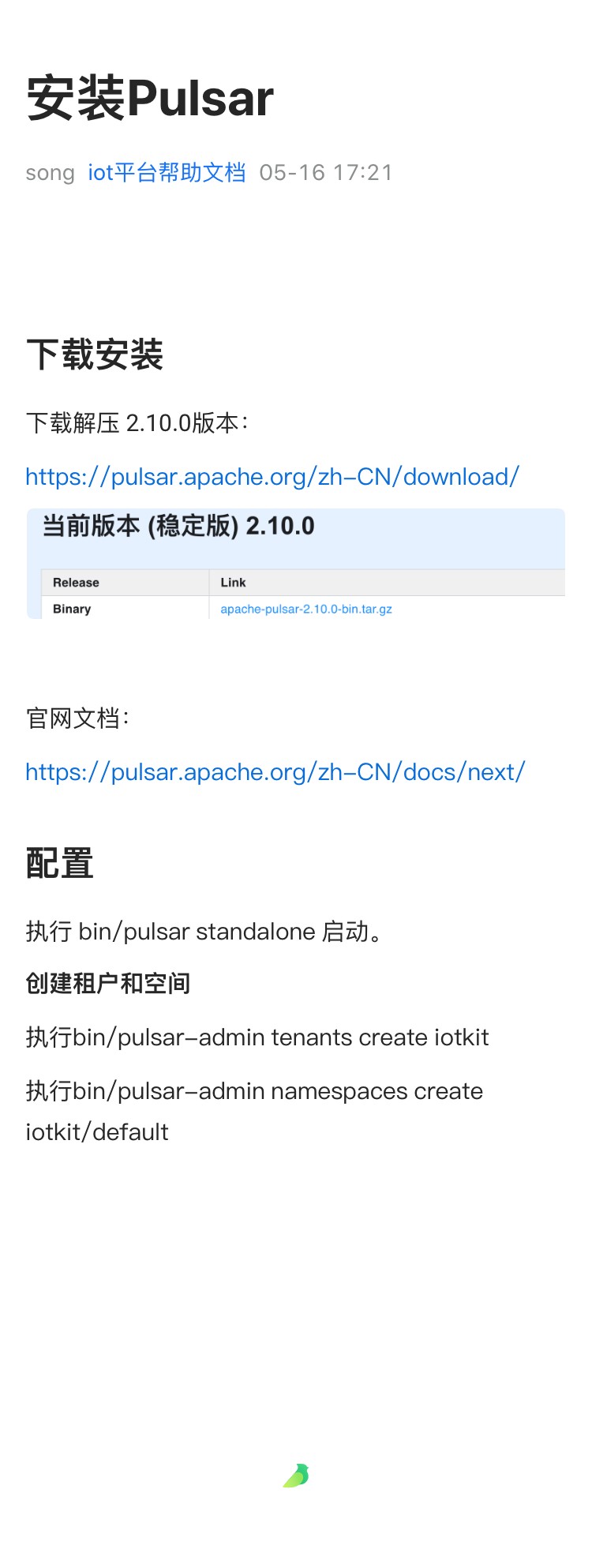

+ **Pulsar安装配置**
+![输入图片说明](doc/%E5%AE%89%E8%A3%85Pulsar.jpg)
+

common/src/main/java/cc/iotkit/common/utils/CodecUtil.java

@@ -1,6 +1,7 @@
 package cc.iotkit.common.utils;

 import org.apache.commons.codec.binary.Base64;
+import org.apache.commons.codec.digest.DigestUtils;
 import org.apache.commons.lang3.StringUtils;

 import javax.crypto.Cipher;
@@ -96,4 +97,9 @@ public class CodecUtil {
         encryptStr = new String(HexUtil.parseHex(encryptStr));
         return StringUtils.isEmpty(encryptStr) ? "" : aesDecryptByBytes(base64Decode(encryptStr), decryptKey);
     }
+
+    public static String md5Str(String content) {
+        return DigestUtils.md5Hex(content);
+    }
+
 }

manager/src/main/java/cc/iotkit/manager/config/AutoBeanConfig.java1

@@ -1,22 +0,0 @@
-package cc.iotkit.manager.config;
-
-import org.keycloak.adapters.KeycloakDeployment;
-import org.keycloak.adapters.KeycloakDeploymentBuilder;
-import org.keycloak.adapters.springboot.KeycloakSpringBootConfigResolver;
-import org.keycloak.representations.adapters.config.AdapterConfig;
-import org.springframework.context.annotation.Bean;
-import org.springframework.context.annotation.Configuration;
-
-@Configuration
-public class AutoBeanConfig {
-
-    @Bean
-    public KeycloakSpringBootConfigResolver keycloakConfigResolver() {
-        return new KeycloakSpringBootConfigResolver();
-    }
-
-    @Bean
-    public KeycloakDeployment getKeycloakDeployment(AdapterConfig adapterConfig){
-        return KeycloakDeploymentBuilder.build(adapterConfig);
-    }
-}

manager/src/main/java/cc/iotkit/manager/config/KeycloakSecurityConfig.java1

@@ -1,92 +0,0 @@
-package cc.iotkit.manager.config;
-
-
-import org.keycloak.adapters.springsecurity.KeycloakConfiguration;
-import org.keycloak.adapters.springsecurity.authentication.KeycloakAuthenticationProvider;
-import org.keycloak.adapters.springsecurity.config.KeycloakWebSecurityConfigurerAdapter;
-import org.keycloak.adapters.springsecurity.management.HttpSessionManager;
-import org.springframework.beans.factory.annotation.Autowired;
-import org.springframework.beans.factory.annotation.Value;
-import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
-import org.springframework.context.annotation.Bean;
-import org.springframework.http.HttpMethod;
-import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
-import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
-import org.springframework.security.config.annotation.web.builders.HttpSecurity;
-import org.springframework.security.core.authority.mapping.SimpleAuthorityMapper;
-import org.springframework.security.web.authentication.session.NullAuthenticatedSessionStrategy;
-import org.springframework.security.web.authentication.session.SessionAuthenticationStrategy;
-
-@EnableGlobalMethodSecurity(prePostEnabled = true)
-@KeycloakConfiguration
-public class KeycloakSecurityConfig extends KeycloakWebSecurityConfigurerAdapter {
-
-    @Value("${app.systemRole}")
-    private String systemRole;
-
-    @Autowired
-    public void configureGlobal(AuthenticationManagerBuilder auth) {
-        SimpleAuthorityMapper grantedAuthorityMapper = new SimpleAuthorityMapper();
-        grantedAuthorityMapper.setPrefix("ROLE_");
-
-        KeycloakAuthenticationProvider keycloakAuthenticationProvider = keycloakAuthenticationProvider();
-        keycloakAuthenticationProvider.setGrantedAuthoritiesMapper(grantedAuthorityMapper);
-        auth.authenticationProvider(keycloakAuthenticationProvider);
-
-    }
-
-    @Bean
-    @Override
-    protected SessionAuthenticationStrategy sessionAuthenticationStrategy() {
-//        return new RegisterSessionAuthenticationStrategy(new SessionRegistryImpl());
-        return new NullAuthenticatedSessionStrategy();
-    }
-
-    @Bean
-    @Override
-    @ConditionalOnMissingBean(HttpSessionManager.class)
-    protected HttpSessionManager httpSessionManager() {
-        return new HttpSessionManager();
-    }
-
-    @Override
-    protected void configure(HttpSecurity http) throws Exception {
-        super.configure(http);
-        http
-                .authorizeRequests()
-                .antMatchers("/*.html", "/favicon.ico", "/v2/api-docs", "/webjars/**", "/swagger-resources/**", "/*.js").permitAll()
-                .antMatchers("/api/**").hasRole("iot_client_user")
-                .antMatchers("/aligenieDevice/invoke/**").hasRole("iot_client_user")
-                //客户端用户写权限
-                .antMatchers("/space/addSpace/**").hasAnyRole("iot_write","iot_client_user")
-                .antMatchers("/space/saveSpace/**").hasAnyRole("iot_write","iot_client_user")
-                .antMatchers("/space/delSpace/**").hasAnyRole("iot_write","iot_client_user")
-                .antMatchers("/space/saveHome/**").hasAnyRole("iot_write","iot_client_user")
-                .antMatchers("/space/currentHome/**").hasAnyRole("iot_write","iot_client_user")
-                .antMatchers("/space/myRecentDevices/**").hasAnyRole("iot_write","iot_client_user")
-                .antMatchers("/space/spaces/**").hasAnyRole("iot_write","iot_client_user")
-                .antMatchers("/space/myDevices/**").hasAnyRole("iot_write","iot_client_user")
-                .antMatchers("/space/findDevice/**").hasAnyRole("iot_write","iot_client_user")
-                .antMatchers("/space/addDevice/**").hasAnyRole("iot_write","iot_client_user")
-                .antMatchers("/space/saveDevice").hasAnyRole("iot_write","iot_client_user")
-                .antMatchers("/space/removeDevice").hasAnyRole("iot_write","iot_client_user")
-                .antMatchers("/space/device/*").hasAnyRole("iot_write","iot_client_user")
-                .antMatchers("/device/*/consumer/*").hasAnyRole("iot_write","iot_client_user")
-                .antMatchers("/device/*/service/property/set").hasAnyRole("iot_write","iot_client_user")
-                .antMatchers("/device/*/service/*/invoke").hasAnyRole("iot_write","iot_client_user")
-
-
-                .antMatchers(HttpMethod.DELETE).hasRole("iot_write")
-                .antMatchers(HttpMethod.PUT).hasRole("iot_write")
-                .antMatchers("/**/save*/**").hasRole("iot_write")
-                .antMatchers("/**/remove*/**").hasRole("iot_write")
-                .antMatchers("/**/del*/**").hasRole("iot_write")
-                .antMatchers("/**/add*/**").hasRole("iot_write")
-                .antMatchers("/**/clear*/**").hasRole("iot_write")
-                .antMatchers("/**/set*/**").hasRole("iot_write")
-                .antMatchers("/**/set").hasRole("iot_write")
-                .antMatchers("/**/invoke").hasRole("iot_write")
-                .antMatchers("/**").hasAnyRole(systemRole)
-                .and().csrf().disable();
-    }
-}

manager/src/main/java/cc/iotkit/manager/config/SaTokenConfigure.java

@@ -4,10 +4,12 @@ import cn.dev33.satoken.interceptor.SaAnnotationInterceptor;
 import cn.dev33.satoken.interceptor.SaRouteInterceptor;
 import cn.dev33.satoken.router.SaRouter;
 import cn.dev33.satoken.stp.StpUtil;
+import lombok.extern.slf4j.Slf4j;
 import org.springframework.context.annotation.Configuration;
 import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
 import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

+@Slf4j
 @Configuration
 public class SaTokenConfigure implements WebMvcConfigurer {

@@ -17,23 +19,8 @@ public class SaTokenConfigure implements WebMvcConfigurer {
         registry.addInterceptor(new SaAnnotationInterceptor()).addPathPatterns("/**");
         // 注册路由拦截器，自定义认证规则
         registry.addInterceptor(new SaRouteInterceptor((req, res, handler) -> {
-            System.out.println(req.getRequestPath());
-            // 根据路由划分模块，不同模块不同鉴权
+            log.info("resource role check,path:{}", req.getRequestPath());
             SaRouter
-                    //管理员、系统用户角色能使用的功能
-                    .match("/**")
-                    .notMatch("/oauth2/**","/*.png").check(c -> StpUtil.checkRoleOr("iot_admin", "iot_system"))
-                    //需要有可写权限的功能
-                    .match(
-                            "/**/save*/**",
-                            "/**/remove*/**",
-                            "/**/del*/**",
-                            "/**/add*/**",
-                            "/**/clear*/**",
-                            "/**/set*/**",
-                            "/**/set",
-                            "/**/invoke"
-                    ).check(c -> StpUtil.checkPermission("write"))
                     //管理员、系统、客户端用户角色能使用的功能
                     .match("/space/addSpace/**",
                             "/space/saveSpace/**",
@@ -52,7 +39,26 @@ public class SaTokenConfigure implements WebMvcConfigurer {
                             "/device/*/service/property/set",
                             "/device/*/service/*/invoke"
                     )
+                    .check(c -> StpUtil.checkRoleOr("iot_admin", "iot_system", "iot_client"));
+
+            SaRouter
+                    //需要有可写权限的功能
+                    .match(
+                            "/**/save*/**",
+                            "/**/remove*/**",
+                            "/**/del*/**",
+                            "/**/add*/**",
+                            "/**/clear*/**",
+                            "/**/set*/**",
+                            "/**/set",
+                            "/**/invoke"
+                    ).check(c -> StpUtil.checkPermission("write"));
+
+            SaRouter
+                    //管理员、系统用户角色能使用的功能
+                    .match("/**")
                     .check(c -> StpUtil.checkRoleOr("iot_admin", "iot_system", "iot_client"))
+
             ;
         })).addPathPatterns("/**")
                 .excludePathPatterns(

manager/src/main/java/cc/iotkit/manager/config/SecurityConfig.java1

@@ -1,55 +0,0 @@
-package cc.iotkit.manager.config;
-
-import org.springframework.beans.factory.annotation.Value;
-import org.springframework.context.annotation.Configuration;
-import org.springframework.http.HttpMethod;
-import org.springframework.security.config.annotation.web.builders.HttpSecurity;
-import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
-
-@Configuration
-public class SecurityConfig extends WebSecurityConfigurerAdapter {
-
-    @Value("${app.systemRole}")
-    private String systemRole;
-
-    @Override
-    protected void configure(HttpSecurity http) throws Exception {
-//        super.configure(http);
-        http
-                .authorizeRequests()
-                .antMatchers("/oauth2/**", "/*.html", "/favicon.ico", "/v2/api-docs", "/webjars/**", "/swagger-resources/**", "/*.js").permitAll()
-                .antMatchers("/api/**").hasRole("iot_client_user")
-                .antMatchers("/aligenieDevice/invoke/**").hasRole("iot_client_user")
-                //客户端用户写权限
-                .antMatchers("/space/addSpace/**").hasAnyRole("iot_write", "iot_client_user")
-                .antMatchers("/space/saveSpace/**").hasAnyRole("iot_write", "iot_client_user")
-                .antMatchers("/space/delSpace/**").hasAnyRole("iot_write", "iot_client_user")
-                .antMatchers("/space/saveHome/**").hasAnyRole("iot_write", "iot_client_user")
-                .antMatchers("/space/currentHome/**").hasAnyRole("iot_write", "iot_client_user")
-                .antMatchers("/space/myRecentDevices/**").hasAnyRole("iot_write", "iot_client_user")
-                .antMatchers("/space/spaces/**").hasAnyRole("iot_write", "iot_client_user")
-                .antMatchers("/space/myDevices/**").hasAnyRole("iot_write", "iot_client_user")
-                .antMatchers("/space/findDevice/**").hasAnyRole("iot_write", "iot_client_user")
-                .antMatchers("/space/addDevice/**").hasAnyRole("iot_write", "iot_client_user")
-                .antMatchers("/space/saveDevice").hasAnyRole("iot_write", "iot_client_user")
-                .antMatchers("/space/removeDevice").hasAnyRole("iot_write", "iot_client_user")
-                .antMatchers("/space/device/*").hasAnyRole("iot_write", "iot_client_user")
-                .antMatchers("/device/*/consumer/*").hasAnyRole("iot_write", "iot_client_user")
-                .antMatchers("/device/*/service/property/set").hasAnyRole("iot_write", "iot_client_user")
-                .antMatchers("/device/*/service/*/invoke").hasAnyRole("iot_write", "iot_client_user")
-
-
-                .antMatchers(HttpMethod.DELETE).hasRole("iot_write")
-                .antMatchers(HttpMethod.PUT).hasRole("iot_write")
-                .antMatchers("/**/save*/**").hasRole("iot_write")
-                .antMatchers("/**/remove*/**").hasRole("iot_write")
-                .antMatchers("/**/del*/**").hasRole("iot_write")
-                .antMatchers("/**/add*/**").hasRole("iot_write")
-                .antMatchers("/**/clear*/**").hasRole("iot_write")
-                .antMatchers("/**/set*/**").hasRole("iot_write")
-                .antMatchers("/**/set").hasRole("iot_write")
-                .antMatchers("/**/invoke").hasRole("iot_write")
-                .antMatchers("/**").hasAnyRole(systemRole)
-                .and().csrf().disable();
-    }
-}

manager/src/main/java/cc/iotkit/manager/controller/DeviceController.java

@@ -10,7 +10,7 @@ import cc.iotkit.manager.model.query.DeviceQuery;
 import cc.iotkit.manager.service.DataOwnerService;
 import cc.iotkit.manager.service.DeferredDataConsumer;
 import cc.iotkit.manager.service.DeviceService;
-import cc.iotkit.manager.utils.AuthUtil;
+import cc.iotkit.utils.AuthUtil;
 import cc.iotkit.model.InvokeResult;
 import cc.iotkit.model.Paging;
 import cc.iotkit.model.device.DeviceInfo;

manager/src/main/java/cc/iotkit/manager/controller/ProtocolController.java

@@ -9,7 +9,7 @@ import cc.iotkit.dao.ProtocolComponentRepository;
 import cc.iotkit.dao.ProtocolConverterRepository;
 import cc.iotkit.dao.UserInfoRepository;
 import cc.iotkit.manager.service.DataOwnerService;
-import cc.iotkit.manager.utils.AuthUtil;
+import cc.iotkit.utils.AuthUtil;
 import cc.iotkit.model.Paging;
 import cc.iotkit.model.protocol.ProtocolComponent;
 import cc.iotkit.model.protocol.ProtocolConverter;

manager/src/main/java/cc/iotkit/manager/controller/RuleEngineController.java

@@ -4,7 +4,7 @@ import cc.iotkit.common.exception.BizException;
 import cc.iotkit.common.utils.ReflectUtil;
 import cc.iotkit.dao.*;
 import cc.iotkit.manager.service.DataOwnerService;
-import cc.iotkit.manager.utils.AuthUtil;
+import cc.iotkit.utils.AuthUtil;
 import cc.iotkit.model.Paging;
 import cc.iotkit.model.rule.RuleInfo;
 import cc.iotkit.model.rule.RuleLog;

manager/src/main/java/cc/iotkit/manager/controller/SpaceController.java

@@ -4,7 +4,7 @@ import cc.iotkit.common.exception.BizException;
 import cc.iotkit.dao.HomeRepository;
 import cc.iotkit.dao.SpaceRepository;
 import cc.iotkit.manager.service.DataOwnerService;
-import cc.iotkit.manager.utils.AuthUtil;
+import cc.iotkit.utils.AuthUtil;
 import cc.iotkit.model.space.Home;
 import cc.iotkit.model.space.Space;
 import org.apache.commons.lang3.StringUtils;

manager/src/main/java/cc/iotkit/manager/controller/SpaceDeviceController.java

@@ -6,7 +6,7 @@ import cc.iotkit.dao.*;
 import cc.iotkit.manager.model.vo.FindDeviceVo;
 import cc.iotkit.manager.model.vo.SpaceDeviceVo;
 import cc.iotkit.manager.service.DataOwnerService;
-import cc.iotkit.manager.utils.AuthUtil;
+import cc.iotkit.utils.AuthUtil;
 import cc.iotkit.model.UserInfo;
 import cc.iotkit.model.device.DeviceInfo;
 import cc.iotkit.model.product.Category;

manager/src/main/java/cc/iotkit/manager/controller/UserInfoController.java

@@ -8,11 +8,10 @@ import cc.iotkit.dao.AligenieDeviceRepository;
 import cc.iotkit.dao.UserInfoRepository;
 import cc.iotkit.manager.service.DataOwnerService;
 import cc.iotkit.manager.service.PulsarAdminService;
-import cc.iotkit.manager.utils.AuthUtil;
+import cc.iotkit.utils.AuthUtil;
 import cc.iotkit.model.UserInfo;
 import cn.dev33.satoken.annotation.SaCheckRole;
 import org.springframework.beans.factory.annotation.Autowired;
-import org.springframework.beans.factory.annotation.Value;
 import org.springframework.web.bind.annotation.*;

 import java.util.*;
@@ -21,9 +20,6 @@ import java.util.*;
 @RequestMapping("/user")
 public class UserInfoController {

-    @Value("${app.systemRole}")
-    private String systemRole;
-
     @Autowired
     private UserInfoRepository userInfoRepository;
     @Autowired
@@ -55,7 +51,7 @@ public class UserInfoController {
             user.setRoles(Collections.singletonList(Constants.ROLE_SYSTEM));
             user.setPermissions(Collections.singletonList(Constants.PERMISSION_WRITE));
             user.setCreateAt(System.currentTimeMillis());
-            user.setSecret(CodecUtil.aesEncrypt(Constants.PWD_SYSTEM_USER, Constants.PWD_SYSTEM_USER));
+            user.setSecret(AuthUtil.enCryptPwd(Constants.PWD_SYSTEM_USER));
             userInfoRepository.save(user);
         } catch (Throwable e) {
             throw new BizException("add platform user error", e);
@@ -79,7 +75,7 @@ public class UserInfoController {
         user.setOwnerId(AuthUtil.getUserId());
         user.setRoles(Collections.singletonList(Constants.ROLE_CLIENT));
         user.setCreateAt(System.currentTimeMillis());
-        user.setSecret(CodecUtil.aesEncrypt(Constants.PWD_CLIENT_USER, Constants.ACCOUNT_SECRET));
+        user.setSecret(AuthUtil.enCryptPwd(Constants.PWD_CLIENT_USER));
         userInfoRepository.save(user);
     }


manager/src/main/java/cc/iotkit/manager/controller/aligenie/AligenieProductController.java

@@ -2,7 +2,7 @@ package cc.iotkit.manager.controller.aligenie;

 import cc.iotkit.dao.AligenieProductRepository;
 import cc.iotkit.manager.service.DataOwnerService;
-import cc.iotkit.manager.utils.AuthUtil;
+import cc.iotkit.utils.AuthUtil;
 import cc.iotkit.model.aligenie.AligenieProduct;
 import org.springframework.beans.factory.annotation.Autowired;
 import org.springframework.web.bind.annotation.GetMapping;

manager/src/main/java/cc/iotkit/manager/controller/api/AccountController.java

@@ -3,7 +3,7 @@ package cc.iotkit.manager.controller.api;
 import cc.iotkit.dao.AppInfoRepository;
 import cc.iotkit.dao.HomeRepository;
 import cc.iotkit.dao.UserInfoRepository;
-import cc.iotkit.manager.utils.AuthUtil;
+import cc.iotkit.utils.AuthUtil;
 import cc.iotkit.model.AppInfo;
 import cc.iotkit.model.space.Home;
 import cc.iotkit.model.UserInfo;

manager/src/main/java/cc/iotkit/manager/controller/api/DeviceController.java

@@ -6,7 +6,7 @@ import cc.iotkit.dao.SpaceDeviceRepository;
 import cc.iotkit.manager.model.vo.AppPageNode;
 import cc.iotkit.manager.service.AppDesignService;
 import cc.iotkit.manager.service.DeviceService;
-import cc.iotkit.manager.utils.AuthUtil;
+import cc.iotkit.utils.AuthUtil;
 import cc.iotkit.model.device.DeviceInfo;
 import cc.iotkit.model.space.SpaceDevice;
 import io.swagger.annotations.ApiImplicitParam;

manager/src/main/java/cc/iotkit/manager/controller/api/HomeController.java

@@ -4,7 +4,7 @@ import cc.iotkit.dao.HomeRepository;
 import cc.iotkit.dao.SpaceRepository;
 import cc.iotkit.dao.UserActionLogRepository;
 import cc.iotkit.dao.UserInfoRepository;
-import cc.iotkit.manager.utils.AuthUtil;
+import cc.iotkit.utils.AuthUtil;
 import cc.iotkit.model.space.Home;
 import cc.iotkit.model.space.Space;
 import cc.iotkit.model.UserActionLog;

manager/src/main/java/cc/iotkit/manager/controller/api/SpaceController.java

@@ -3,7 +3,7 @@ package cc.iotkit.manager.controller.api;
 import cc.iotkit.dao.*;
 import cc.iotkit.manager.model.vo.SpaceDeviceVo;
 import cc.iotkit.manager.service.SpaceDeviceService;
-import cc.iotkit.manager.utils.AuthUtil;
+import cc.iotkit.utils.AuthUtil;
 import cc.iotkit.model.device.DeviceInfo;
 import cc.iotkit.model.product.Product;
 import cc.iotkit.model.space.Space;

manager/src/main/java/cc/iotkit/manager/service/DataOwnerService.java

@@ -1,7 +1,7 @@
 package cc.iotkit.manager.service;

 import cc.iotkit.common.exception.BizException;
-import cc.iotkit.manager.utils.AuthUtil;
+import cc.iotkit.utils.AuthUtil;
 import cc.iotkit.model.Owned;
 import cc.iotkit.model.device.DeviceInfo;
 import org.apache.commons.lang3.StringUtils;

manager/src/main/resources/application-dev.yml

@@ -8,32 +8,32 @@ spring:
       max-file-size: 10MB
       max-request-size: 12MB

+  #mongodb数据库配置
   data:
     mongodb:
-      uri: mongodb://填写mongodb地址/admin
+      uri: mongodb://填写mongodb地址
       database: iotkit

   elasticsearch:
     rest:
-      uris: http://elasticsearch 连接地址
-      username: elasticsearch 用户名
-      password: 密码
+      #使用内置es的配置
+      uris: http://127.0.0.1:9200
+      username:
+      password:
       connection-timeout: 10s

   redis:
-    host: redis地址
+    #使用内置redis的配置
+    host: 127.0.0.1
     port: 6379
     database: 0
-    password: redis密码
+    password:

-  cache:
-    cache-names: foo,bar
-    caffeine:
-      spec: maximumSize=5000,expireAfterAccess=120s
   mvc:
     pathmatch:
       matching-strategy: ant_path_matcher

+#图片存储用的是阿里云oss，如果需要上传产品图片才需要配置
 aliyun:
   bucketId: 填写阿里云bucketId
   endpoint: oss-cn-shenzhen.aliyuncs.com
@@ -42,7 +42,7 @@ aliyun:

 sa-token:
   # token名称 (同时也是cookie名称)
-  token-name: satoken
+  token-name: token
   # token有效期，单位s 默认30天, -1代表永不过期
   timeout: 2592000
   # token临时有效期 (指定时间内无操作就视为token过期) 单位: 秒
@@ -56,13 +56,11 @@ sa-token:
   # 是否输出操作日志
   is-log: false

+#pulsar消息队列配置，需要进行配置
 pulsar:
   broker: pulsar://pulsar broker地址:6650
   service: http://pulsar 服务地址:8080

-app:
-  systemRole: iot_system_user
-
-mqtt:
-  url: tcp://填写mqtt连接地址
-
+#认证中心地址
+oauth2:
+  auth-server-url: http://127.0.0.1:8086

manager/src/main/resources/application.yml

@@ -8,39 +8,41 @@ spring:
       max-file-size: 10MB
       max-request-size: 12MB

+  #mongodb数据库配置
   data:
     mongodb:
-      uri: mongodb://iotkit:123456@192.168.100.118:27017/?authSource=iotkit
+      uri: mongodb://填写mongodb地址
       database: iotkit

   elasticsearch:
     rest:
-      uris: http://192.168.100.118:9200
+      #使用内置es的配置
+      uris: http://127.0.0.1:9200
+      username:
+      password:
       connection-timeout: 10s

   redis:
-    host: 192.168.100.50
+    #使用内置redis的配置
+    host: 127.0.0.1
     port: 6379
     database: 0
-    password: 5tgbNHY^
+    password:

-  cache:
-    cache-names: foo,bar
-    caffeine:
-      spec: maximumSize=5000,expireAfterAccess=300s
   mvc:
     pathmatch:
       matching-strategy: ant_path_matcher

+#图片存储用的是阿里云oss，如果需要上传产品图片才需要配置
 aliyun:
-  bucketId: iotkit-images
+  bucketId: 填写阿里云bucketId
   endpoint: oss-cn-shenzhen.aliyuncs.com
-  accessKeyId: LTAI4FmGGouSnScYrGe7rQLA
-  accessKeySecret: 9S0xjffwmGW2B3HsE4Efw1TqUy8YXC
+  accessKeyId: 填写阿里云accessKeyId
+  accessKeySecret: 填写阿里云accessKeySecret

 sa-token:
   # token名称 (同时也是cookie名称)
-  token-name: satoken
+  token-name: token
   # token有效期，单位s 默认30天, -1代表永不过期
   timeout: 2592000
   # token临时有效期 (指定时间内无操作就视为token过期) 单位: 秒
@@ -54,23 +56,11 @@ sa-token:
   # 是否输出操作日志
   is-log: false

-security:
-  oauth2:
-    resource:
-      filter-order: 3
-
-oauth2:
-  auth-server-url: http://127.0.0.1:8086
-
+#pulsar消息队列配置，需要进行配置
 pulsar:
-  broker: pulsar://192.168.100.66:6650
-  service: http://192.168.100.66:8080
-
-app:
-  systemRole: iot_system_user
-  aligenie:
-    push:
-      device:
-mqtt:
-  url: tcp:/192.168.100.118:1883
+  broker: pulsar://pulsar broker地址:6650
+  service: http://pulsar 服务地址:8080

+#认证中心地址
+oauth2:
+  auth-server-url: http://127.0.0.1:8086

oauth2-server/pom.xml

@@ -48,6 +48,12 @@
             <artifactId>dao</artifactId>
         </dependency>

+        <dependency>
+            <groupId>junit</groupId>
+            <artifactId>junit</artifactId>
+            <scope>test</scope>
+        </dependency>
+
     </dependencies>

 </project>

oauth2-server/src/main/java/cc/iotkit/oauth/controller/AuthClientController.java

@@ -2,10 +2,12 @@ package cc.iotkit.oauth.controller;

 import cc.iotkit.common.Constants;
 import cc.iotkit.common.utils.CodecUtil;
+import cc.iotkit.common.utils.ReflectUtil;
 import cc.iotkit.dao.OauthClientCache;
 import cc.iotkit.dao.UserInfoCache;
 import cc.iotkit.model.OauthClient;
 import cc.iotkit.model.UserInfo;
+import cc.iotkit.oauth.vo.UserInfoVo;
 import cc.iotkit.utils.SoMap;
 import cn.dev33.satoken.stp.SaLoginConfig;
 import cn.dev33.satoken.stp.StpUtil;
@@ -63,15 +65,15 @@ public class AuthClientController {
                 .toString();
         SoMap so = SoMap.getSoMap().setJsonString(str);
         log.info("get token by code result:{}", so);
-        // code不等于200  代表请求失败
-        if (so.getInt("code") != 200) {
+        // 存在code,不是token结构
+        if (so.getInt("code") != 0) {
             return SaResult.error(so.getString("msg"));
         }

         // 根据openid获取其对应的userId
-        SoMap data = so.getMap("data");
-        String uid = getUserIdByOpenid(data.getString("openid"));
-        String access_token = data.getString("access_token");
+        SoMap data = new SoMap();
+        String uid = getUserIdByOpenid(so.getString("openid"));
+        String access_token = so.getString("access_token");
         UserInfo userInfo = userInfoCache.getUserInfo(uid);
         data.put("name", userInfo.getNickName());
         data.put("uid", uid);
@@ -92,34 +94,17 @@ public class AuthClientController {
         return new RedirectView(redirect_uri);
     }

-    // 根据 Access-Token 置换相关的资源: 获取账号昵称、头像、性别等信息
-    @RequestMapping("/getUserinfo")
-    public SaResult getUserinfo(String accessToken) {
-        // 调用Server端接口，查询开放的资源
-        String str = OkHttps.sync(serverUrl + "/oauth2/userinfo")
-                .addBodyPara("access_token", accessToken)
-                .post()
-                .getBody()
-                .toString();
-        SoMap so = SoMap.getSoMap().setJsonString(str);
-        // code不等于200  代表请求失败
-        if (so.getInt("code") != 200) {
-            return SaResult.error(so.getString("msg"));
-        }
-
-        // 返回相关参数 (data=获取到的资源 )
-        SoMap data = so.getMap("data");
-        return SaResult.data(data);
-    }
-
     @GetMapping("/checkLogin")
     public SaResult checkLogin() {
         try {
-            StpUtil.checkLogin();
+            String uid = StpUtil.getLoginId().toString();
+            UserInfo userInfo = userInfoCache.getUserInfo(uid);
+            UserInfoVo userVo = new UserInfoVo();
+            ReflectUtil.copyNoNulls(userInfo, userVo);
+            return SaResult.ok().setData(userVo);
         } catch (Throwable e) {
             return SaResult.error("no login");
         }
-        return SaResult.ok();
     }

     @SneakyThrows

oauth2-server/src/main/java/cc/iotkit/oauth/controller/AuthServerController.java

@@ -1,25 +1,28 @@
 package cc.iotkit.oauth.controller;

-import cc.iotkit.common.Constants;
-import cc.iotkit.common.utils.CodecUtil;
+import cc.iotkit.common.utils.JsonUtil;
 import cc.iotkit.dao.UserInfoRepository;
 import cc.iotkit.model.UserInfo;
 import cc.iotkit.oauth.service.TokenRequestHandler;
+import cc.iotkit.utils.AuthUtil;
 import cn.dev33.satoken.context.SaHolder;
 import cn.dev33.satoken.oauth2.config.SaOAuth2Config;
 import cn.dev33.satoken.oauth2.logic.SaOAuth2Util;
 import cn.dev33.satoken.stp.StpUtil;
 import cn.dev33.satoken.util.SaResult;
+import lombok.extern.slf4j.Slf4j;
 import org.springframework.beans.factory.annotation.Autowired;
 import org.springframework.web.bind.annotation.ExceptionHandler;
 import org.springframework.web.bind.annotation.RequestMapping;
 import org.springframework.web.bind.annotation.RestController;
 import org.springframework.web.servlet.ModelAndView;

+import javax.servlet.http.HttpServletRequest;
 import java.util.HashMap;
 import java.util.LinkedHashMap;
 import java.util.Map;

+@Slf4j
 @RestController
 public class AuthServerController {

@@ -28,8 +31,10 @@ public class AuthServerController {

     // 处理所有OAuth相关请求
     @RequestMapping("/oauth2/*")
-    public Object request() {
-        return TokenRequestHandler.serverRequest();
+    public Object request(HttpServletRequest request) {
+        Object result = TokenRequestHandler.serverRequest();
+        log.info("oauth path:{},result:{}", request.getRequestURI(), JsonUtil.toJsonString(result));
+        return result;
     }

     // Sa-OAuth2 定制化配置
@@ -44,8 +49,7 @@ public class AuthServerController {
                         UserInfo userInfo = userInfoRepository.findByUid(name);
                         if (userInfo != null) {
                             String secret = userInfo.getSecret();
-                            String encodePwd = CodecUtil.aesEncrypt(pwd, Constants.ACCOUNT_SECRET);
-                            if (encodePwd.equals(secret)) {
+                            if (AuthUtil.checkPwd(pwd, secret)) {
                                 StpUtil.login(userInfo.getId(), "PC");
                                 return SaResult.ok();
                             }
@@ -94,4 +98,6 @@ public class AuthServerController {
         map.put("address", "山东省 青岛市 城阳区");
         return SaResult.data(map);
     }
+
+
 }

oauth2-server/src/main/java/cc/iotkit/oauth/service/StpInterfaceImpl.java

@@ -6,7 +6,6 @@ import cn.dev33.satoken.stp.StpInterface;
 import org.springframework.beans.factory.annotation.Autowired;
 import org.springframework.stereotype.Component;

-import java.util.ArrayList;
 import java.util.List;

 @Component
@@ -20,10 +19,8 @@ public class StpInterfaceImpl implements StpInterface {
      */
     @Override
     public List<String> getPermissionList(Object loginId, String loginType) {
-        // 本list仅做模拟，实际项目中要根据具体业务逻辑来查询权限
-        List<String> list = new ArrayList<String>();
-        list.add("write");
-        return list;
+        UserInfo userInfo = userInfoCache.getUserInfo(loginId.toString());
+        return userInfo.getPermissions();
     }

     /**

oauth2-server/src/main/java/cc/iotkit/oauth/service/TokenRequestHandler.java

@@ -8,7 +8,13 @@ import cn.dev33.satoken.oauth2.config.SaOAuth2Config;
 import cn.dev33.satoken.oauth2.exception.SaOAuth2Exception;
 import cn.dev33.satoken.oauth2.logic.SaOAuth2Consts;
 import cn.dev33.satoken.oauth2.logic.SaOAuth2Handle;
+import cn.dev33.satoken.oauth2.logic.SaOAuth2Util;
+import cn.dev33.satoken.oauth2.model.AccessTokenModel;
+import cn.dev33.satoken.oauth2.model.ClientTokenModel;
+import cn.dev33.satoken.oauth2.model.RequestAuthModel;
 import cn.dev33.satoken.oauth2.model.SaClientModel;
+import cn.dev33.satoken.stp.StpUtil;
+import cn.dev33.satoken.util.SaResult;

 public class TokenRequestHandler {

@@ -25,9 +31,9 @@ public class TokenRequestHandler {
                 return SaOAuth2Handle.authorize(req, res, cfg);
             }
         } else if (req.isPath(SaOAuth2Consts.Api.token) && req.isParam(SaOAuth2Consts.Param.grant_type, SaOAuth2Consts.GrantType.authorization_code)) {
-            return SaOAuth2Handle.token(req, res, cfg);
+            return token(req, res, cfg);
         } else if (req.isPath(SaOAuth2Consts.Api.token) && req.isParam(SaOAuth2Consts.Param.grant_type, SaOAuth2Consts.GrantType.refresh_token)) {
-            return SaOAuth2Handle.refreshToken(req);
+            return refreshToken(req);
         } else if (req.isPath(SaOAuth2Consts.Api.revoke)) {
             return SaOAuth2Handle.revokeToken(req);
         } else if (req.isPath(SaOAuth2Consts.Api.doLogin)) {
@@ -46,17 +52,65 @@ public class TokenRequestHandler {
             if (!cfg.getIsPassword() || !cm.isPassword && !cm.isAutoMode) {
                 throw new SaOAuth2Exception("暂未开放的授权模式");
             } else {
-                return SaOAuth2Handle.password(req, res, cfg);
+                return password(req, res, cfg);
             }
         } else if (req.isPath(SaOAuth2Consts.Api.token) && req.isParam(SaOAuth2Consts.Param.grant_type, SaOAuth2Consts.GrantType.client_credentials)) {
             cm = SaOAuth2Handle.currClientModel();
             if (!cfg.getIsClient() || !cm.isClient && !cm.isAutoMode) {
                 throw new SaOAuth2Exception("暂未开放的授权模式");
             } else {
-                return SaOAuth2Handle.clientToken(req, res, cfg);
+                return clientToken(req, res, cfg);
             }
         } else {
             return "{\"msg\": \"not handle\"}";
         }
     }
+
+    public static Object token(SaRequest req, SaResponse res, SaOAuth2Config cfg) {
+        String code = req.getParamNotNull(SaOAuth2Consts.Param.code);
+        String clientId = req.getParamNotNull(SaOAuth2Consts.Param.client_id);
+        String clientSecret = req.getParamNotNull(SaOAuth2Consts.Param.client_secret);
+        String redirectUri = req.getParam(SaOAuth2Consts.Param.redirect_uri);
+        SaOAuth2Util.checkGainTokenParam(code, clientId, clientSecret, redirectUri);
+        AccessTokenModel token = SaOAuth2Util.generateAccessToken(code);
+        return token.toLineMap();
+    }
+
+    public static Object refreshToken(SaRequest req) {
+        String clientId = req.getParamNotNull(SaOAuth2Consts.Param.client_id);
+        String clientSecret = req.getParamNotNull(SaOAuth2Consts.Param.client_secret);
+        String refreshToken = req.getParamNotNull(SaOAuth2Consts.Param.refresh_token);
+        SaOAuth2Util.checkRefreshTokenParam(clientId, clientSecret, refreshToken);
+        return SaOAuth2Util.refreshAccessToken(refreshToken).toLineMap();
+    }
+
+    public static Object password(SaRequest req, SaResponse res, SaOAuth2Config cfg) {
+        String username = req.getParamNotNull(SaOAuth2Consts.Param.username);
+        String password = req.getParamNotNull(SaOAuth2Consts.Param.password);
+        String clientId = req.getParamNotNull(SaOAuth2Consts.Param.client_id);
+        String scope = req.getParam(SaOAuth2Consts.Param.scope, "");
+        SaOAuth2Util.checkContract(clientId, scope);
+        SaHolder.getStorage().set(StpUtil.stpLogic.splicingKeyJustCreatedSave(), "no-token");
+        Object retObj = cfg.getDoLoginHandle().apply(username, password);
+        if (!StpUtil.isLogin()) {
+            return retObj;
+        } else {
+            RequestAuthModel ra = new RequestAuthModel();
+            ra.clientId = clientId;
+            ra.loginId = StpUtil.getLoginId();
+            ra.scope = scope;
+            AccessTokenModel at = SaOAuth2Util.generateAccessToken(ra, true);
+            return at.toLineMap();
+        }
+    }
+
+    public static Object clientToken(SaRequest req, SaResponse res, SaOAuth2Config cfg) {
+        String clientId = req.getParamNotNull(SaOAuth2Consts.Param.client_id);
+        String clientSecret = req.getParamNotNull(SaOAuth2Consts.Param.client_secret);
+        String scope = req.getParam(SaOAuth2Consts.Param.scope);
+        SaOAuth2Util.checkContract(clientId, scope);
+        SaOAuth2Util.checkClientSecret(clientId, clientSecret);
+        ClientTokenModel ct = SaOAuth2Util.generateClientToken(clientId, scope);
+        return ct.toLineMap();
+    }
 }

oauth2-server/src/main/java/cc/iotkit/oauth/vo/UserInfoVo.java

@@ -0,0 +1,70 @@
+package cc.iotkit.oauth.vo;
+
+import lombok.AllArgsConstructor;
+import lombok.Builder;
+import lombok.Data;
+import lombok.NoArgsConstructor;
+
+import java.util.ArrayList;
+import java.util.List;
+
+@Data
+@NoArgsConstructor
+@AllArgsConstructor
+@Builder
+public class UserInfoVo {
+
+    /**
+     * 用户账号
+     */
+    private String uid;
+
+    /**
+     * 用户昵称
+     */
+    private String nickName;
+
+    /**
+     * 性别 0-未知 1-male,2-female
+     */
+    private Integer gender;
+
+    /**
+     * 头像地址
+     */
+    private String avatarUrl;
+
+    private String email;
+
+    private String address;
+
+    /**
+     * 当前家庭Id
+     */
+    private String currHomeId;
+
+    /**
+     * 用户类型
+     * 0:平台用户
+     * 1:终端用户
+     */
+    private Integer type;
+
+    /**
+     * 角色
+     */
+    private List<String> roles = new ArrayList<>();
+
+    /**
+     * 权限
+     */
+    private List<String> permissions = new ArrayList<>();
+
+    /**
+     * 用户使用的平台
+     * 见:Constants.THIRD_PLATFORM
+     */
+    private List<String> usePlatforms = new ArrayList<>();
+
+
+}

manager/src/main/java/cc/iotkit/manager/utils/AuthUtil.java → oauth2-server/src/main/java/cc/iotkit/utils/AuthUtil.java

@@ -1,9 +1,10 @@
-package cc.iotkit.manager.utils;
+package cc.iotkit.utils;

 import cc.iotkit.common.Constants;
+import cc.iotkit.common.utils.CodecUtil;
 import cn.dev33.satoken.stp.StpUtil;
+import org.apache.commons.lang3.RandomUtils;

-import java.util.ArrayList;
 import java.util.List;

 public class AuthUtil {
@@ -28,4 +29,14 @@ public class AuthUtil {
         return AuthUtil.getUserRoles().contains(Constants.ROLE_WRITE);
     }

+    public static String enCryptPwd(String pwd) throws Exception {
+        return CodecUtil.aesEncrypt(CodecUtil.md5Str(pwd) + ":"
+                + RandomUtils.nextInt(1000, 9999), Constants.ACCOUNT_SECRET);
+    }
+
+    public static boolean checkPwd(String pwd, String secret) throws Exception {
+        String code = CodecUtil.aesDecrypt(secret, Constants.ACCOUNT_SECRET);
+        String[] arr = code.split(":");
+        return arr.length > 0 && CodecUtil.md5Str(pwd).equals(arr[0]);
+    }
 }

oauth2-server/src/test/java/GenPwdSecret.java

@@ -0,0 +1,14 @@
+import cc.iotkit.utils.AuthUtil;
+import org.junit.Test;
+
+public class GenPwdSecret {
+
+    @Test
+    public void gen() throws Exception {
+        //生成密码加密内容
+        String secret = AuthUtil.enCryptPwd("c123456");
+        System.out.println(secret);
+        System.out.println(AuthUtil.checkPwd("c123456", secret));
+    }
+
+}

protocol-gateway/component-server/src/main/java/cc/iotkit/comps/ApiTool.java

@@ -125,7 +125,7 @@ public class ApiTool {
         request = request
                 .timeout(timeout)
                 .putHeader("wrap-response", "json")
-                .putHeader("authorization", "Bearer " + token);
+                .putHeader("token", token);

         AtomicReference<ApiResponse> apiResponse = new AtomicReference<>(
                 new ApiResponse(500, "", null, System.currentTimeMillis()));
