浏览代码

打包方式修改

xiwa 2 年之前
父节点
当前提交
bb9ca476c8

+ 24 - 17
data/components/eabb131d-8fd1-43a8-88d9-a198abfd3d42/component.js

@@ -174,19 +174,29 @@ this.onReceive=function(head,type,payload){

   //数据上报
   var reply=
-	  {
-		productKey:pk,
-		deviceName:dn,
-		mid:payload.id,
-		content:{
-		  topic:topic.replace("/s/","/c/")+"_reply",
-		  payload:JSON.stringify({
-			id:payload.id,
-			method: payload.method+"_reply",
-			code:0,
-		  })
-		}
-	  };
+      {
+        productKey:pk,
+        deviceName:dn,
+        mid:payload.id,
+        content:{
+          topic:topic.replace("/s/","/c/")+"_reply",
+          payload:JSON.stringify({
+            id:payload.id,
+            method: payload.method+"_reply",
+            code:0,
+          })
+        }
+      };
+
+    var action={};
+    if(!topic.endsWith("_reply")){
+        //需要回复的消息
+        action={
+          type:"ack",
+          content:JSON.stringify(reply)
+        }
+    }
+
   return {
 	type:"report",
 	data:{
@@ -198,10 +208,7 @@ this.onReceive=function(head,type,payload){
 		payload:payload
 	  }
 	},
-	action:{
-	  type:"ack",
-	  content:JSON.stringify(reply)
-	}
+	action:action
   }
 }


二进制

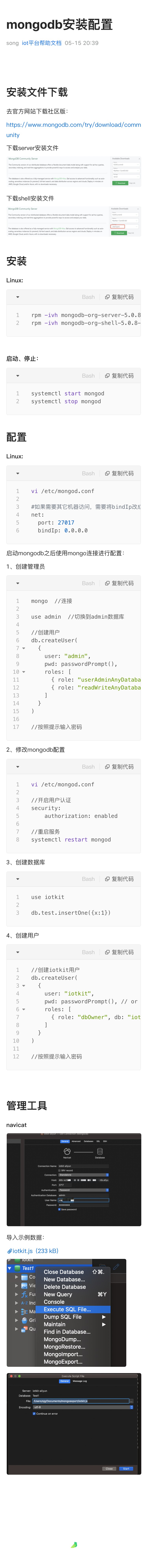

doc/mongodb安装配置.jpg


二进制

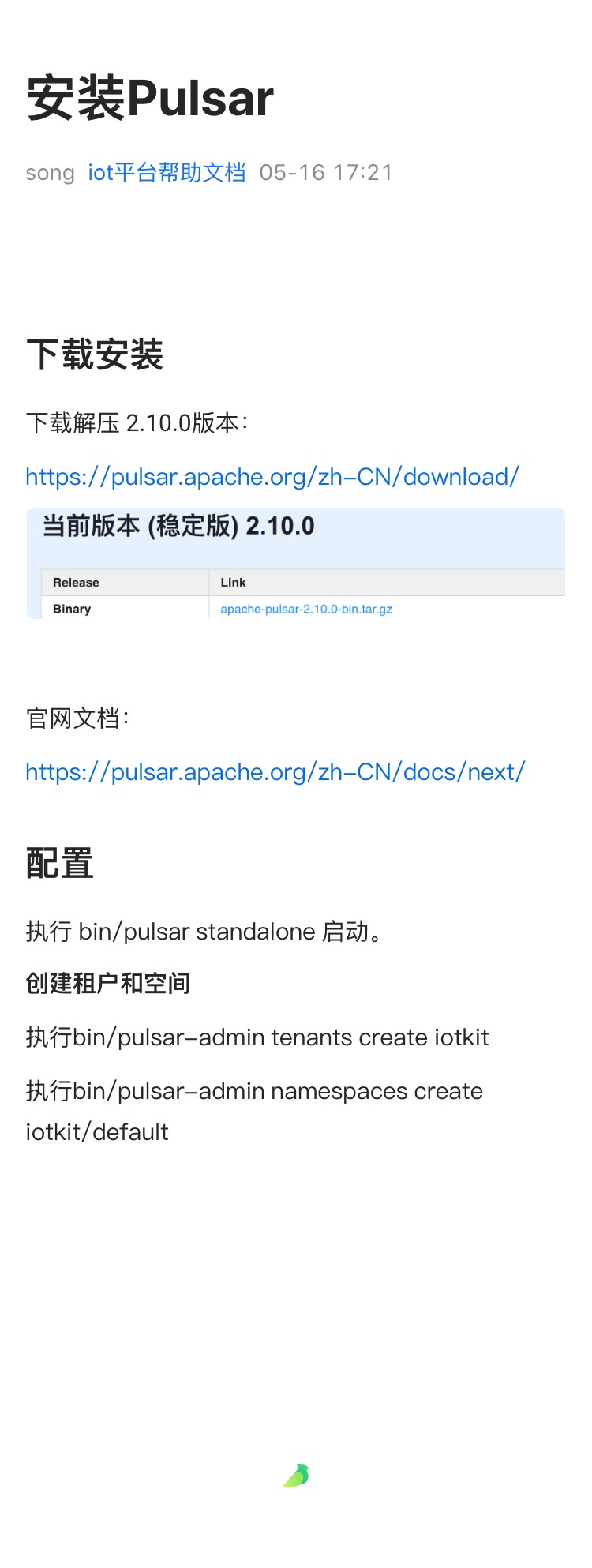

doc/安装Pulsar.jpg


+ 2 - 1
iot-common/src/main/java/cc/iotkit/common/ComponentClassLoader.java

@@ -38,7 +38,8 @@ public class ComponentClassLoader {
             classLoader.close();
         }

-        classLoader = URLClassLoader.newInstance(new URL[]{jarPath.toURI().toURL()}, ClassLoader.getSystemClassLoader());
+        classLoader = URLClassLoader.newInstance(new URL[]{jarPath.toURI().toURL()},
+                Thread.currentThread().getContextClassLoader());
         classLoaders.put(name, classLoader);

         Method method = URLClassLoader.class.getDeclaredMethod("addURL", URL.class);

+ 27 - 2
iot-components/iot-mqtt-component/src/main/resources/component.js

@@ -48,7 +48,7 @@ function register(payload){
   var dn=arr[1];
   var model=arr[2];
   var pwd=md5("xdkKUymrEGSCYWswqCvSPyRSFvH5j7CU"+auth.clientid);
-  if(pwd!=auth.password){
+  if(pwd.toLocaleLowerCase()!=auth.password.toLocaleLowerCase()){
 	throw new Error("incorrect password");
   }
   return {
@@ -173,6 +173,30 @@ this.onReceive=function(head,type,payload){
   }

   //数据上报
+  var reply=
+      {
+        productKey:pk,
+        deviceName:dn,
+        mid:payload.id,
+        content:{
+          topic:topic.replace("/s/","/c/")+"_reply",
+          payload:JSON.stringify({
+            id:payload.id,
+            method: payload.method+"_reply",
+            code:0,
+          })
+        }
+      };
+
+    var action={};
+    if(!topic.endsWith("_reply")){
+        //需要回复的消息
+        action={
+          type:"ack",
+          content:JSON.stringify(reply)
+        }
+    }
+
   return {
 	type:"report",
 	data:{
@@ -183,7 +207,8 @@ this.onReceive=function(head,type,payload){
 		topic:topic,
 		payload:payload
 	  }
-	}
+	},
+	action:action
   }
 }


+ 0 - 104
iot-components/iot-mqtt-component/src/main/resources/converter.js

@@ -1,104 +0,0 @@
-
-var mid=1;
-
-function getMid(){
-  mid++;
-  if(mid>10000){
-	mid=1;
-  }
-  return mid+"";
-}
-
-this.decode = function (msg) {
-  //对msg进行解析,并返回物模型数据
-  var content=msg.content;
-  var topic = content.topic;
-  var payload = content.payload;
-  var identifier = topic.substring(topic.lastIndexOf("/") + 1);
-
-  if (topic.endsWith("/property/post")) {
-	//属性上报
-	return {
-	  mid: msg.mid,
-	  productKey: msg.productKey,
-	  deviceName: msg.deviceName,
-	  type:"property",
-	  identifier: "report", //属性上报
-	  occur: new Date().getTime(), //时间戳,设备上的事件或数据产生的本地时间
-	  time: new Date().getTime(), //时间戳,消息上报时间
-	  data: payload.params,
-	};
-  } else if (topic.indexOf("/event/") > 0) {
-	//事件上报
-	return {
-	  mid: msg.mid,
-	  productKey: msg.productKey,
-	  deviceName: msg.deviceName,
-	  type:"event",
-	  identifier: identifier,
-	  occur: new Date().getTime(),
-	  time: new Date().getTime(),
-	  data: payload.params,
-	};
-  }else if(topic.endsWith("/service/property/set_reply")){
-	//属性设置回复
-	return {
-	  mid: msg.mid,
-	  productKey: msg.productKey,
-	  deviceName: msg.deviceName,
-	  type:"property",
-	  identifier: identifier,
-	  occur: new Date().getTime(),
-	  time: new Date().getTime(),
-	  code: payload.code
-	};
-  } else if (topic.endsWith("_reply")) {
-	//服务回复
-	return {
-	  mid: msg.mid,
-	  productKey: msg.productKey,
-	  deviceName: msg.deviceName,
-	  type:"service",
-	  identifier: identifier,
-	  occur: new Date().getTime(),
-	  time: new Date().getTime(),
-	  code: payload.code,
-	  data: payload.data,
-	};
-  }
-  return null;
-};
-
-this.encode = function (service,device) {
-  var type=service.type;
-  var identifier=service.identifier;
-  var topic="/sys/"+service.productKey+"/"+service.deviceName+"/c/service/";
-  var method="thing.service.";
-
-  if(type=="property"){
-	method+="property."+identifier;
-	topic+="property/"+identifier;
-  }else if(type=="service"){
-	method+=identifier;
-	topic+=identifier;
-  }
-  var deviceMid=getMid();
-  var params={};
-  for(var p in service.params){
-	params[p]=service.params[p];
-  }
-
-  return {
-	productKey:service.productKey,
-	deviceName:service.deviceName,
-	mid:deviceMid,
-	content:{
-	  topic:topic,
-	  payload:JSON.stringify({
-		id:deviceMid,
-		method:method,
-		params:params
-	  })
-	}
-  }
-};

+ 54 - 9
iot-package/src/main/resources/assemblies/standalone-package.xml

@@ -3,10 +3,62 @@
           xsi:schemaLocation="http://maven.apache.org/plugins/maven-assembly-plugin/assembly/1.1.2 http://maven.apache.org/xsd/assembly-1.1.2.xsd">
     <id>standalone-package</id>
     <formats>
-        <format>tar</format>
+        <format>zip</format>
     </formats>
+
     <includeBaseDirectory>false</includeBaseDirectory>
+
     <fileSets>
+        <!--
+        0755->即用户具有读/写/执行权限,组用户和其它用户具有读写权限;
+        0644->即用户具有读写权限,组用户和其它用户具有只读权限;
+        -->
+        <!-- 将assemblies/bin目录下的所有文件输出到打包后的bin目录中 -->
+        <fileSet>
+            <directory>${project.parent.basedir}/iot-standalone/src/main/bin</directory>
+            <outputDirectory>/bin</outputDirectory>
+            <includes>
+                <include>**/*.bat</include>
+                <include>**/*.sh</include>
+            </includes>
+            <fileMode>0755</fileMode>
+            <!--如果是脚本,一定要改为unix.如果是在windows上面编码,会出现dos编写问题-->
+            <lineEnding>unix</lineEnding>
+            <filtered>true</filtered><!-- 是否进行属性替换 -->
+        </fileSet>
+
+        <!-- 将/iot-standalone/src/main/resources下配置文件打包到config目录 -->
+        <fileSet>
+            <directory>${project.parent.basedir}/iot-standalone/src/main/resources</directory>
+            <outputDirectory>/config</outputDirectory>
+            <includes>
+                <include>**/*.xml</include>
+                <include>**/*.properties</include>
+                <include>**/*.yml</include>
+            </includes>
+            <filtered>true</filtered><!-- 是否进行属性替换 -->
+        </fileSet>
+
+        <!-- 将项目启动jar打包到lib目录中 -->
+        <fileSet>
+            <directory>target</directory>
+            <outputDirectory>lib</outputDirectory>
+            <includes>
+                <include>*.jar</include>
+            </includes>
+        </fileSet>
+
+        <!-- 将项目说明文档打包到docs目录中 -->
+        <fileSet>
+            <directory>${project.parent.basedir}</directory>
+            <outputDirectory>docs</outputDirectory>
+            <includes>
+                <include>*.md</include>
+            </includes>
+            <fileMode>0644</fileMode>
+        </fileSet>
+
+        <!--将初始化数据打包到data目录-->
         <fileSet>
             <directory>${project.parent.basedir}/data/components</directory>
             <outputDirectory>data/components</outputDirectory>
@@ -28,13 +80,6 @@
                 <include>**/*</include>
             </includes>
         </fileSet>
-    </fileSets>
-    <dependencySets>
-        <dependencySet>
-            <outputDirectory>lib</outputDirectory>

-            <scope>runtime</scope>
-            <unpack>false</unpack>
-        </dependencySet>
-    </dependencySets>
+    </fileSets>
 </assembly>

二进制
iot-standalone/.DS_Store


+ 5 - 0
iot-standalone/pom.xml

@@ -181,6 +181,11 @@
                 </configuration>
             </plugin>

+            <plugin>
+                <groupId>org.springframework.boot</groupId>
+                <artifactId>spring-boot-maven-plugin</artifactId>
+            </plugin>
+
             <plugin>
                 <groupId>org.apache.maven.plugins</groupId>
                 <artifactId>maven-assembly-plugin</artifactId>

+ 38 - 0
iot-standalone/src/main/bin/start.bat

@@ -0,0 +1,38 @@
+echo off
+
+set APP_NAME=${project.build.finalName}.jar
+set LOG_IMPL_FILE=log4j2.xml
+set LOGGING_CONFIG=
+if exist ../config/%LOG_IMPL_FILE% (
+    set LOGGING_CONFIG=-Dlogging.config=../config/%LOGGING_CONFIG%
+)
+set CONFIG= -Dlogging.path=../log %LOGGING_CONFIG% -Dspring.config.location=../config/
+
+set DEBUG_OPTS=
+if ""%1"" == ""debug"" (
+   set DEBUG_OPTS= -Xloggc:../log/gc.log -verbose:gc -XX:+PrintGCDetails -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=../log
+   goto debug
+)
+
+set JMX_OPTS=
+if ""%1"" == ""jmx"" (
+   set JMX_OPTS= -Dcom.sun.management.jmxremote -Dcom.sun.management.jmxremote.port=9888 -Dcom.sun.management.jmxremote.ssl=FALSE -Dcom.sun.management.jmxremote.authenticate=FALSE
+   goto jmx
+)
+
+echo "Starting the %APP_NAME%"
+java -Xms512m -Xmx512m -server %DEBUG_OPTS% %JMX_OPTS% %CONFIG% -jar ../lib/%APP_NAME%
+echo "java -Xms512m -Xmx512m -server %DEBUG_OPTS% %JMX_OPTS% %CONFIG% -jar ../lib/%APP_NAME%"
+goto end
+
+:debug
+echo "debug"
+java -Xms512m -Xmx512m -server %DEBUG_OPTS% %CONFIG% -jar ../lib/%APP_NAME%
+goto end
+
+:jmx
+java -Xms512m -Xmx512m -server %JMX_OPTS% %CONFIG% -jar ../lib/%APP_NAME%
+goto end
+
+:end
+pause

+ 109 - 0
iot-standalone/src/main/bin/start.sh

@@ -0,0 +1,109 @@
+#!/bin/bash
+
+# 项目名称
+SERVER_NAME="${project.artifactId}"
+
+# jar名称
+JAR_NAME="${project.build.finalName}.jar"
+
+# 进入bin目录
+cd `dirname $0`
+# bin目录绝对路径
+BIN_DIR=`pwd`
+# 返回到上一级项目根目录路径
+cd ..
+# 打印项目根目录绝对路径
+# `pwd` 执行系统命令并获得结果
+DEPLOY_DIR=`pwd`
+
+# 外部配置文件绝对目录,如果是目录需要/结尾,也可以直接指定文件
+# 如果指定的是目录,spring则会读取目录中的所有配置文件
+CONF_DIR=$DEPLOY_DIR/config
+# SERVER_PORT=`sed '/server.port/!d;s/.*=//' config/application.properties | tr -d '\r'`
+# 获取应用的端口号
+SERVER_PORT=`sed -nr '/port: [0-9]+/ s/.*port: +([0-9]+).*/\1/p' config/application.yml|head -1`
+
+PIDS=`ps -f | grep java | grep "$CONF_DIR" |awk '{print $2}'`
+if [ "$1" = "status" ]; then
+    if [ -n "$PIDS" ]; then
+        echo "The $SERVER_NAME is running...!"
+        echo "PID: $PIDS"
+        exit 0
+    else
+        echo "The $SERVER_NAME is stopped"
+        exit 0
+    fi
+fi
+
+if [ -n "$PIDS" ]; then
+    echo "ERROR: The $SERVER_NAME already started!"
+    echo "PID: $PIDS"
+    exit 1
+fi
+
+if [ -n "$SERVER_PORT" ]; then
+    SERVER_PORT_COUNT=`netstat -tln | grep $SERVER_PORT | wc -l`
+    if [ $SERVER_PORT_COUNT -gt 0 ]; then
+        echo "ERROR: The $SERVER_NAME port $SERVER_PORT already used!"
+        exit 1
+    fi
+fi
+
+# 项目日志输出绝对路径
+LOGS_DIR=$DEPLOY_DIR/log
+# 如果logs文件夹不存在,则创建文件夹
+if [ ! -d $LOGS_DIR ]; then
+    mkdir $LOGS_DIR
+fi
+STDOUT_FILE=$LOGS_DIR/catalina.log
+
+# JVM Configuration
+JAVA_OPTS=" -Djava.awt.headless=true -Djava.net.preferIPv4Stack=true "
+JAVA_DEBUG_OPTS=""
+if [ "$1" = "debug" ]; then
+    JAVA_DEBUG_OPTS=" -Xdebug -Xnoagent -Djava.compiler=NONE -Xrunjdwp:transport=dt_socket,address=8000,server=y,suspend=n "
+fi
+
+JAVA_JMX_OPTS=""
+if [ "$1" = "jmx" ]; then
+    JAVA_JMX_OPTS=" -Dcom.sun.management.jmxremote.port=1099 -Dcom.sun.management.jmxremote.ssl=false -Dcom.sun.management.jmxremote.authenticate=false "
+fi
+
+JAVA_MEM_OPTS=""
+BITS=`java -version 2>&1 | grep -i 64-bit`
+if [ -n "$BITS" ]; then
+    JAVA_MEM_OPTS=" -server -Xmx512m -Xms512m -Xmn256m -Xss256k"
+else
+    JAVA_MEM_OPTS=" -server -Xms512m -Xmx512m"
+fi
+
+# 加载外部log4j2文件的配置
+LOG_IMPL_FILE=log4j2.xml
+LOGGING_CONFIG=""
+if [ -f "$CONF_DIR/$LOG_IMPL_FILE" ]
+then
+    LOGGING_CONFIG="-Dlogging.config=$CONF_DIR/$LOG_IMPL_FILE"
+fi
+CONFIG_FILES=" -Dlogging.path=$LOGS_DIR $LOGGING_CONFIG -Dspring.config.location=$CONF_DIR/ "
+echo -e "Starting the $SERVER_NAME ..."
+nohup java $JAVA_OPTS $JAVA_MEM_OPTS $JAVA_DEBUG_OPTS $JAVA_JMX_OPTS $CONFIG_FILES -jar $DEPLOY_DIR/lib/$JAR_NAME > $STDOUT_FILE 2>&1 &
+
+COUNT=0
+while [ $COUNT -lt 1 ]; do
+    echo -e ".\c"
+    sleep 1
+    if [ -n "$SERVER_PORT" ]; then
+        COUNT=`netstat -an | grep $SERVER_PORT | wc -l`
+    else
+       COUNT=`ps -f | grep java | grep "$DEPLOY_DIR" | awk '{print $2}' | wc -l`
+    fi
+    if [ $COUNT -gt 0 ]; then
+        break
+    fi
+done
+
+
+echo "OK!"
+PIDS=`ps -f | grep java | grep "$DEPLOY_DIR" | awk '{print $2}'`
+echo "PID: $PIDS"
+echo "STDOUT: $STDOUT_FILE"

+ 18 - 0
iot-standalone/src/main/bin/stop.sh

@@ -0,0 +1,18 @@
+#!/bin/bash
+
+# 项目名称
+APPLICATION="${project.artifactId}"
+
+# 项目启动jar包名称
+APPLICATION_JAR="${project.build.finalName}.jar"
+
+# 通过项目名称查找到PI,然后kill -9 pid
+PID=$(ps -ef | grep "${APPLICATION_JAR}" | grep -v grep | awk '{ print $2 }')
+if [[ -z "$PID" ]]
+then
+    echo ${APPLICATION} is already stopped
+else
+    echo kill  ${PID}
+    kill -9 ${PID}
+    echo ${APPLICATION} stopped successfully
+fi

+ 4 - 1
iot-standalone/src/main/java/cc/iotkit/manager/config/EmbeddedRedisConfig.java

@@ -21,7 +21,10 @@ public class EmbeddedRedisConfig {
         RedisServer redisServer;
         String os = System.getProperty("os.name").toLowerCase();
         if (os.contains("windows")) {
-            redisServer = RedisServer.builder().setting("maxheap 200m").build();
+            redisServer = RedisServer.builder().setting("maxheap 200m")
+                    .port(6379)
+                    .setting("bind localhost")
+                    .build();
         } else {
             redisServer = new RedisServer();
         }

+ 1 - 20
iot-standalone/src/main/java/cc/iotkit/manager/service/DeviceService.java

@@ -150,26 +150,7 @@ public class DeviceService {
             //设备指令下发
             deviceComponentManager.send(thingService);
         }
-        String mid = thingService.getMid();
-        DeviceInfo device = deviceInfoData.findByDeviceId(deviceId);
-
-        //保存设备日志
-        ThingModelMessage thingModelMessage = ThingModelMessage.builder()
-                .mid(mid)
-                .deviceId(deviceId)
-                .productKey(pk)
-                .deviceName(dn)
-                .uid(device.getUid())
-                .type(type)
-                .identifier(identifier)
-                .data(data)
-                .occurred(System.currentTimeMillis())
-                .time(System.currentTimeMillis())
-                .build();
-
-        thingModelMessageData.add(thingModelMessage);
-
-        return mid;
+        return thingService.getMid();
     }

 }

+ 2 - 0
iot-test-tool/iot-test-mqtt/src/main/java/cc/iotkit/test/mqtt/model/Request.java

@@ -20,5 +20,7 @@ public class Request {

     private String id;

+    private String method;
+
     private Object params;
 }

+ 3 - 2
iot-test-tool/iot-test-mqtt/src/main/java/cc/iotkit/test/mqtt/performance/ReportTest.java

@@ -33,8 +33,8 @@ public class ReportTest {


         if (args.length == 0) {
-            Mqtt.brokerHost = "127.0.0.1";
-//            Mqtt.brokerHost = "120.76.96.206";
+//            Mqtt.brokerHost = "127.0.0.1";
+            Mqtt.brokerHost = "120.76.96.206";
 //            Mqtt.brokerHost = "172.16.1.109";
         } else {
             Mqtt.brokerHost = args[0];
@@ -74,6 +74,7 @@ public class ReportTest {
                             () -> {
                                 Request request = new Request();
                                 request.setId(UUID.randomUUID().toString());
+                                request.setMethod("thing.event.property.post");
                                 Map<String, Object> param = new HashMap<>();
                                 param.put("volt", Math.round(Math.random() * 100));
                                 request.setParams(param);
